Xscanner 3D
Handheld 0.05mm High-Precision 3D Scanner
Xscanner 3D
A portable professional blue-laser 3D scanner
Powered by a strong algorithm engine and HD camera module
Equipped with 7 pairs of crossed laser lines and 1 high-energy single laser line
Offers dual scanning modes with excellent anti-interference performance.
Core Features

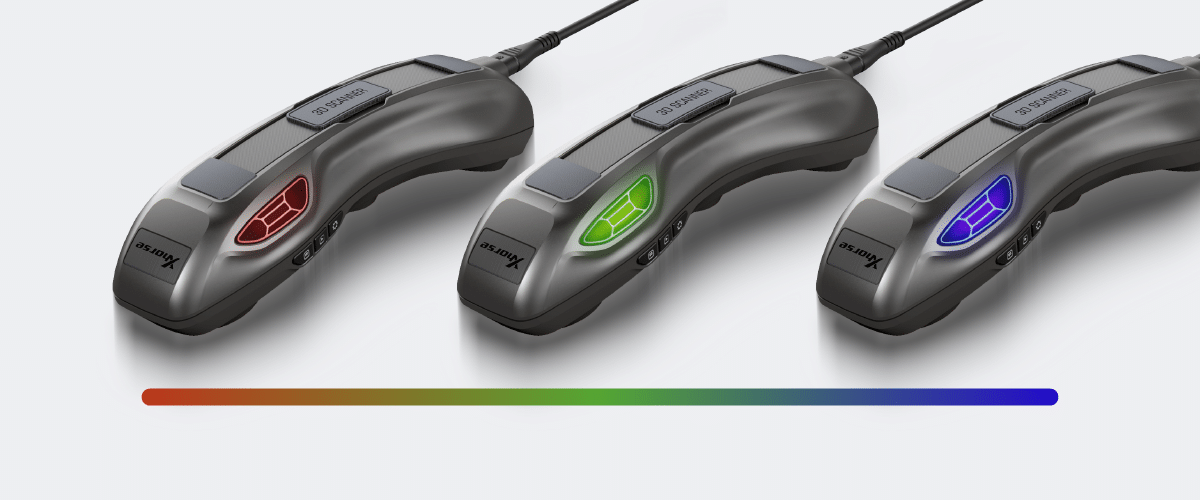

7×2+1 Blue Laser Array

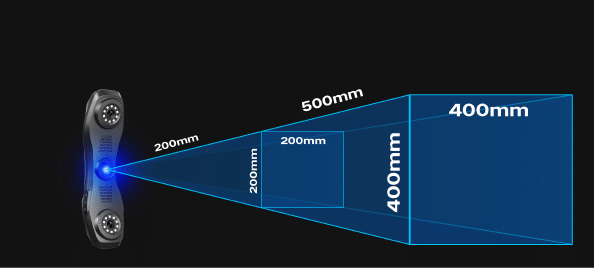

Powered by blue laser technology with excellent anti-interference performance. Captures up to 420,000 measurements per second with a single-frame scanning range up to 400x400mm.
0.05mm Ultra Precision
Scanning accuracy reaches 0.05mm and scanning resolution reaches 0.05mm. Twenty ring fill lights precisely eliminate shadows for high-quality point cloud data.
Intelligent Algorithm Engine
Uses intelligent marker matching algorithms together with feature extraction and binocular vision processing to achieve fast and accurate frame-to-frame matching.
Lightweight Portable Design
Built with a compact 239×66×62mm structure and weighs only 425g. The streamlined body combines minimalist tech aesthetics with a comfortable grip.

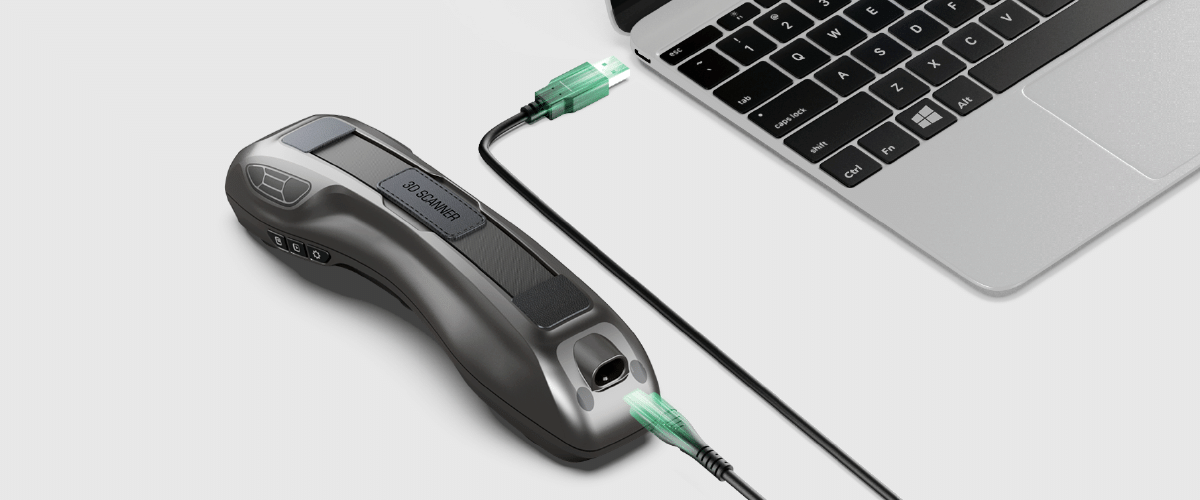

Zero-Learning-Curve Operation
USB plug-and-play with a guided simplified calibration workflow, letting you enjoy high-quality 3D scanning shortly after setup.

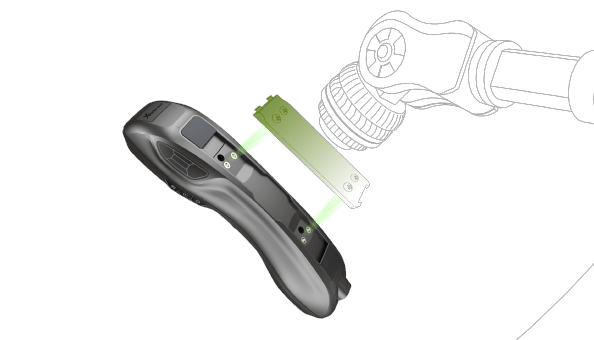

Expandable Interface
The back provides 4 screw holes for mounting quick-release plates, tripods, robotic arms, and more, unlocking more possibilities for DIY projects.
Technical Specifications
Scanning Performance
| Laser Source | 7 pairs of laser lines + 1 single laser line |
| Laser Grade | Class I (eye-safe) |
| Measurement Rate | 420,000 measurements/s |
| Scan Accuracy | Up to 0.05mm* *Indicates that the accuracy within a 200mm measurement distance is 0.05mm |
| Scan Resolution | Up to 0.05mm |
| Scan Range | Up to 400mm x 400mm (single frame) |
| Reference Distance | 350mm |
Hardware Specifications
| Image Resolution | 1920*1200 |
| Weight | 425g |
| Dimensions | 239×66×62mm |
| Transmission Mode | USB 3.0 |
| Operating Temperature | -20 to 40°C (optimal temperature: 20°C) |
| Operating Humidity | 10% to 90% (non-condensing) |
Software Support
| Output Format | Xpro, ply, txt, stl, off, obj |
| Bundled Software | Xscanner 3D |
| Real-time Preview | Millisecond-level 3D modeling preview |
| Post-processing Functions | Point cloud editing, surface reconstruction, mesh editing |
Xscanner 3D Software
Xscanner 3D is a 3D scanning and processing software package designed specifically for Xhorse 3D scanners. It intuitively and accurately converts scanned objects into high-resolution 3D models while providing fast post-processing functions. It supports exporting Xpro, ply, txt, stl, off, obj and other formats, streamlining workflows and making cross-platform work more efficient.
Real-time Triangle Mesh
Equipped with real-time HASH meshing technology, it delivers millisecond-level 3D modeling through dynamic topology optimization for clear details and realistic results.
Smart Guidance
A user-friendly interface with a clear guided workflow lets you complete configuration in just 1 to 2 minutes.
Post-processing Operations
Includes a built-in post-processing module supporting point cloud editing, surface reconstruction, and 3D mesh editing for easy hole filling and mesh simplification.
Measurement Functions
Built-in measurement tools support distance measurement and fitting for standard geometric bodies.
Multi-format Compatibility
Supports one-click export to Xpro, ply, txt, stl, off, obj and other formats for seamless integration with mainstream 3D inspection and design software.
Incremental Scanning
Exclusive Xpro project format supports incremental scan continuation, allowing interrupted projects to be resumed at any time with additional local detail scanning.
Computer Requirements
| CPU | Intel Core i7-9850H or better |
| GPU | NVIDIA GPU 8GB or better |
| Memory | 32GB DDR4 or higher |
| Operating System | Recommended: Windows 10 or above |
| Data Transfer Interface Requirement | USB 3.0 |
Application Scenarios
